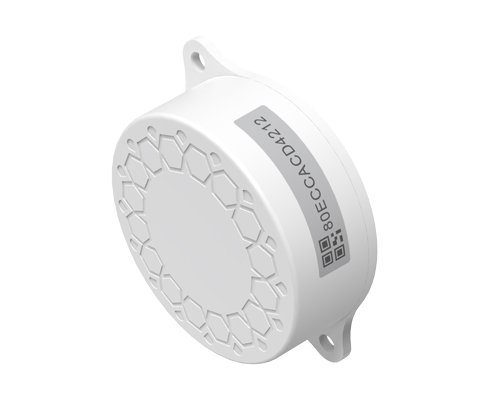

The TS-1104H is a Bluetooth beacon that supports ibeacon, custom broadcast, Eddystone single channel or multi-channel hybrid broadcast, IP67 waterproof, and can be used in both indoor and outdoor scenarios.
TS-1104H has been redesigned to optimise power consumption, range, configuration, installation and battery replacement. It offers multiple configuration options (temperature sensor, accelerometer, battery type), with an extreme broadcast distance of 120m (open space) and a range of up to 8-10 years, which allows users to choose flexibly according to the scenarios, and greatly reduces the deployment cost and maintenance cost.
TS-1104H can be fixed by glue or screw, and is widely used in indoor positioning, indoor navigation, exhibition navigation, social check-in, advertising push, asset management, item tracking, patrol clock and other solutions.
| Model No. | TS-1104H |
| Bluetooth Version | Bluetooth 5.3 |
| Chipset | Nordic nRF52 Series |
| TX Power | -19.5~+2.5 dBm, Default +2.5dBm |
| OTA | YES |
| Distance | 120m |

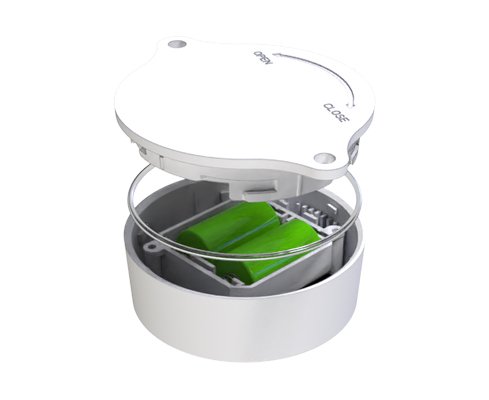

| Battery | ER14250 / AAA (Optional, Replaceable) |
| Battery Life | 4 Years |
| Certification | BQB, FCC, CE, SRRC, RoHS, REACH |
| Color | White |
| Weight | 44.8g（ER14250*1）/ 54.6g（ER14250*2） |
| Size | Φ59.2*21.8mm |
| G-sensor | Optional |
| Temperature Sensor | Optional |
| OEM | Custom color, Print Logo, OEM Package, Software |
