Small size Bluetooth 5.1 DA14531 transparent transmission module TS-M02
Small size Bluetooth 5.1 DA14531 transparent transmission module TS-M02

Small size Bluetooth 5.1 DA14531 transparent transmission module TS-M02

TS-M02 is a Bluetooth module integrated with DA14531 Bluetooth chip, with rich peripheral interfaces, and to meet the needs of various scenarios with very low power consumption. It is very small and can be used in a variety of scenarios.

Model No.TS-M02
Bluetooth ChipsetDA14531
Bluetooth Version5.1
TX Power-19.5~+2.5 dBm
Receiving sensitivity-94dBm
Pin/IO15/12
InterfaceUART
Operating temperature-40~+85℃
Operating voltage1.7~3.6V
AntennaCeramics
Distance90m

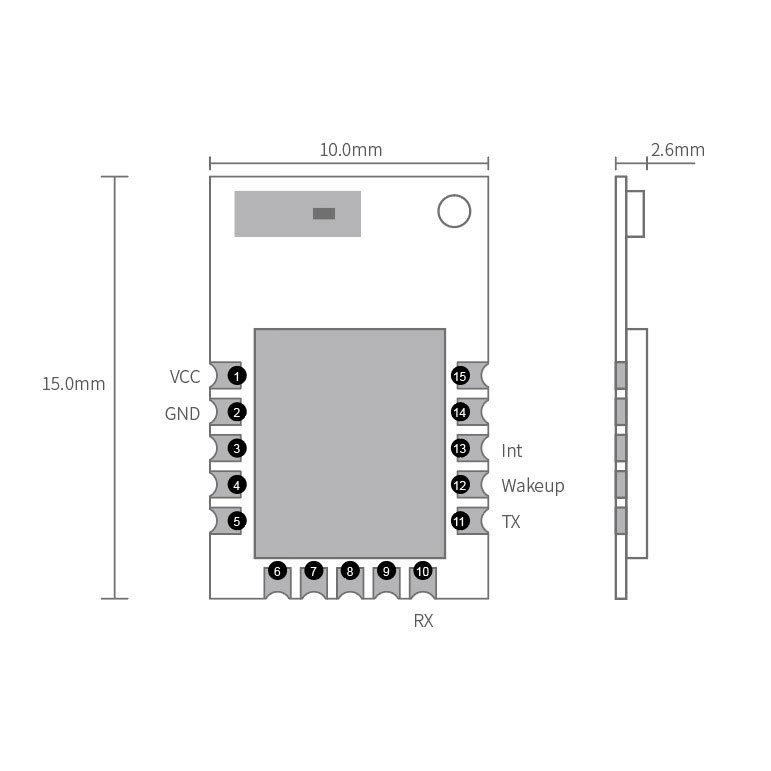

Size15*10*2.6mm
CertificationCE, FCC
FunctionTransparent transmission as Slave
